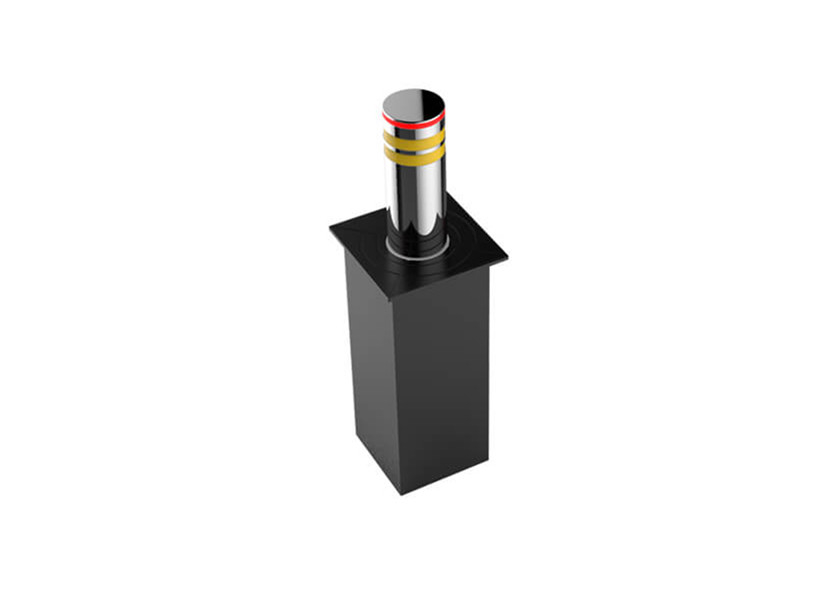

Retractable Roadway Safety Automatic Rising Remote Control High Security Bollards Systems

FUNCTIONS & FEATURES

1. Bollard Thickness: 6mm (standard), 8mm, 10mm, 12mm, 20mm optional
2. Diameter:219(Standard) 273mm(optional)
3. Structure : With load-bearing steel beam column, anti-collision steel beam column
4. LED light (optional)
5. Reflective sticker: 2 strips
6. Link-control interface
7. In case of a power outage, the bollards can be manually lowered down
8. IP rate: IP68
9. Weight:150±KG Integrated
10. In rising and falling, reversible operation is available
11. Device running noise≤60decibel
12. Waterproof integrated hydraulic device drive
13. The hydraulic cylinder is double sealed to ensure a waterproof rating
14. Hydraulic drive comes with hydraulic lock
15. PLC programming command control system
16. Solenoid valve voltage 24V
17. Remote control distance 50M-100M(Based on the environment)
18. The control box displays text adjustable (Up, Down, Action, Time control adjustment)
19. Text display with Chinese and English bilingual
20. PLC built-in encryption system
21. Water immersion performance:48 hours without leakage and working well

SPECS

Crash test

Bollard structure:

CASE REFERENCE

Our service

1. OEM Manufacturing welcome: Product, Package
2. Sample order accepted
3. We will reply you for your inquiry in 24 hours.
4. We offer at least 12 months warranty and provide lifelong technical support.
