Introduction:

LD-600 is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding access ways or for counting vehicles. The output signal can be used for controlling door drive mechanisms, operating barriers, activating card dispensers etc.

Installing the loop :

After determining the loop geometry, a groove (5-8 mm wide, 30-50 mm deep) must be cut in the floor for installing the loop. We recommend cutting an inclined groove (45° angle) at the corners of the loop. Routing the loop wire along this incline will protect it from excessive wear at the corners. The groove must then be cleaned avoiding any kind of moisture. Run the loop wire as tight as possible along the very bottom of the groove.

You can use commercial copper strand (flexible, insulated, 1.5 mm)

A.Application Scope :

A1)Parking lot entrances vehicle detection ;
A2)Parking lot space information acquisition system ;
A3)Electronic police traffic lights snap shot system ;
A4)Traffic monitoring system .

B.Main Characteristics:

Type:TLD-600(double channel)

Operating temp.: -30°C ~ +75°C

Storage temp.: -40°C ~ +85°C

Relative humidity: ≤95%

Shell: PC + ABS engineering plastics

Installation: DIN rail

Dimensions: 110×60×100 mm (L×W×H)

Net Weight: 400g

Operating voltages:AC220V±10%

Power consumption:<5W

Relay output:DC24V /3A

Frequency range:20kHz ~ 170kHz

Reaction time:10 ms

Sensitivity:10 grades adjustable

Loop inductance: Ideal 100µH~300µH Max 50µH~1000µH

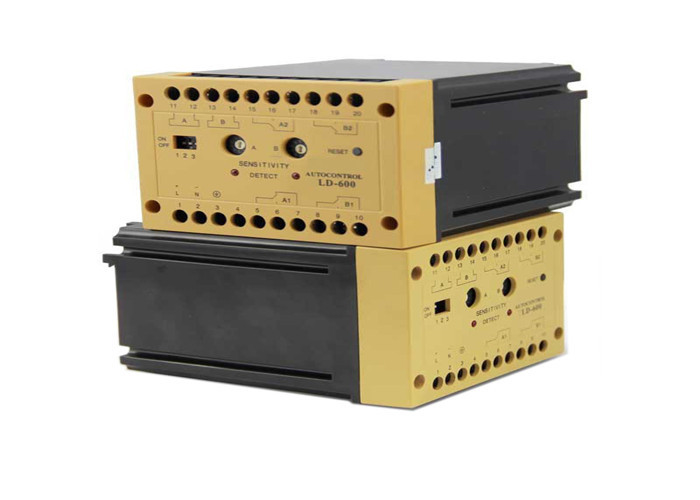

Product diaplay:

Product flow and package:
