Automatic Barrier Gate
>
|
|
| Place of Origin | Shenzhen，China |
| Brand Name | SINOMATIC |
| Certification | CE, ISO, UL |
| Model Number | DZ-830 |
PRODUCT OVERVIEW
Thank you for purchasing the 3rd generation brushless motor barrier gate. This product adopts the latest mold design technology, mold die-casting manufacturing technology and brushless control speed regulation technology. The arm left and right interchangeable quickly. No clutch design is convenient to use. The movement adopts two-stage worm gear drive, curved crank with three-link structure, the speed of opening and closing is fast and stable. Easy maintenance and long service life.
TECHNICAL SPECIFICATIONS
| Model | DZ-830 |
| Cabinet size | 343*300*950(mm) |
| Working Temperature | -35℃~+65℃ |
| Power Supply | DC24V; AC110V/220V, 50/60 Hz. |
| Open/close Speed | 1.5s-6s(Adjustable) |
| Rated Power | 160W |
| Driving Method | DC brushless motor |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m(open,sunny weather) |
| Protection Grade | IP54 |
| Motor No-load speed | 1850r/min |
| Max Boom Length | 3m~6m |
PRODUCT ADVANTAGES

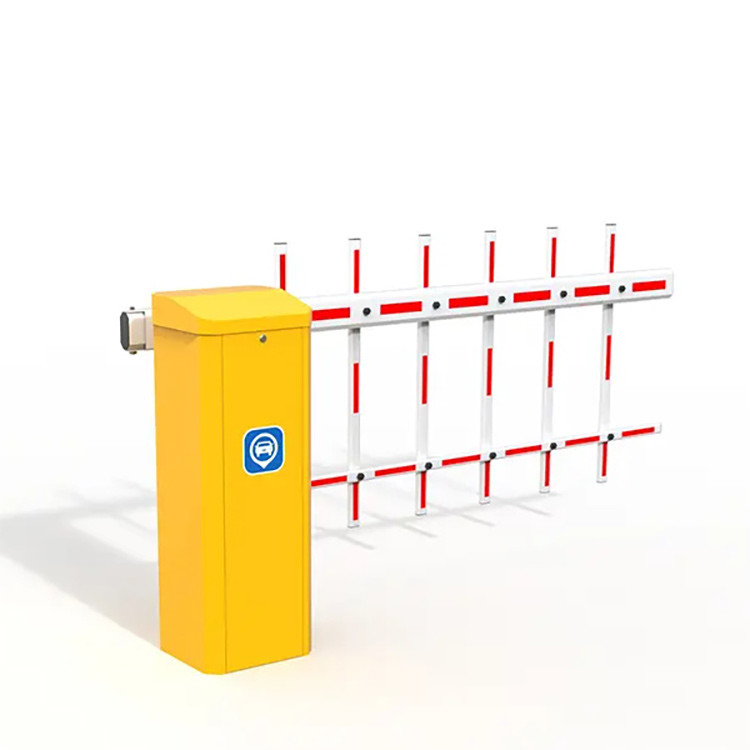

1. Advanced mechatronics side-mounted design concept: structure compact,quickly assembly,easy maintenance.
2. Molding production: high precision, fast efficiency and guaranteed quality.
3. Worm-gear secondary variable speed transmission: high precision, long lifetime, motor wheel design, gate opening by manually when power off, no blocking, no oil leakage, large torque, low noise, can normally operation at the temperature of -35 °C etc.
4. DC brushless motor design:low consumption, high efficiency, no overheat, wide speed adjustment.
5. Hall limit:automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at speed and stable.
6.Curved triple connecting rod structure design concept, makes arm in vertical and horizontal position, easy to adjust the arm balance, avoid to lift arm violently.
7.Arm direction quickly interchanged: interchanged according to different directions on construction site, reduce inventory and capital pressure.
8.Advanced DC brushless controller: use integrated chip drive, fast processing speed, large memory, good control effect, powerful function, high degree of automation; 24V low voltage power supply, adapt to global voltage, safe and reliable.
HOUSING OPTIONAL COLORS
MAIN FUNCTION AND FEATURES
1.Operation speed can be adjusted.
2. Slow up and slow down can be adjusted.
3. The limit angle can be adjusted.
4. Left and right direction can be quickly interchanged.
5.The barrier arm can be manually operated in case of power failure.
6.418 frequency learning code anti-copy remote controller.
7.Infrared photocell sensor I/O signal input function.
8.Loop detector and radar I/O signal anti-collision signal input function.
9.Up,down and stop I/O signal input function.
10,Counting (fleet) function.
11.LED light lo signal output function.
12.Traffic light lo signal output function.
13.Up and down in place, normally open and normally closed signal output function.
14.RS485 communication output function.
15. Delay arm drop function.
16. Arm auto-reverse function.
17.Automatic lifting function when power is off (requires additional power storage module).
18, 10 port single-key cycle up and down function.
19.Loop detector normally open and normally closed function.
21.Anti-collision alarm function (requires additional fee, installation of alarm and sensor).
22.Fire linkage signal input function.
23.The l0 port closes the signal input function.
24. 24V storage battery input function.
Service Items
1 One year’s free servicing is supplied(not including the arm);
2 Lifetime charged servicing is offered;
3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
1 Broken by the wrong installation.
2 Broken by improper voltage.
3 The surfaces of the system destroyed by wrong installation or use.
4 Broken by natural disaster.
5 Overdue.
6 Servicing items out of our promises.
