Automatic Security Barrier Gate Pedestrian Access Control Security Barrier Swing Gate CE Certified

PRODUCT DESCRIPTION

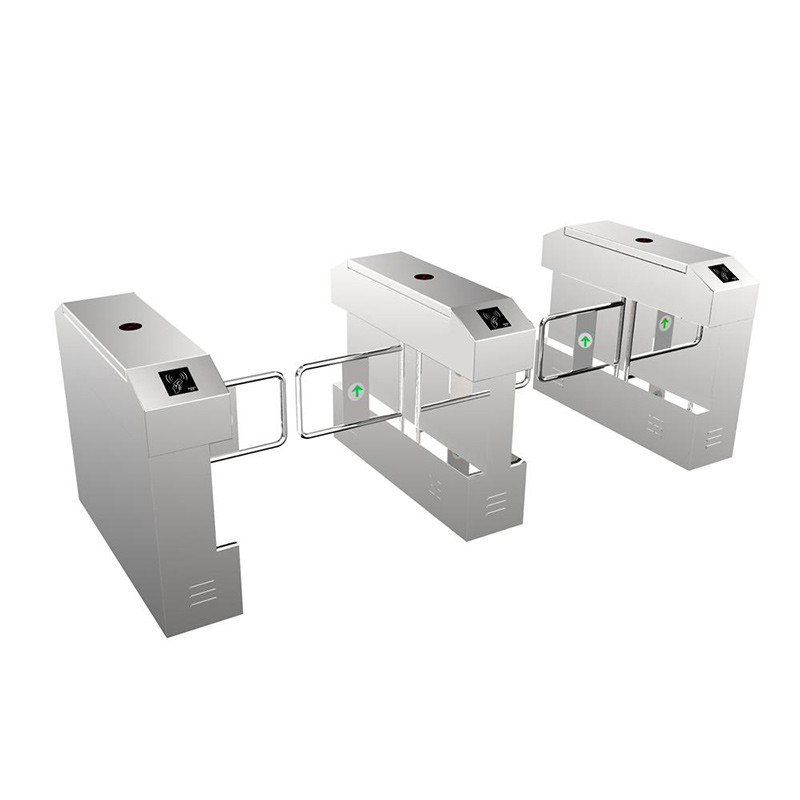

SINOMATIC Swing Type Barrier is the best suited product for pedestrian control. These are space efficient security barriers with compact design yet offers sufficient space to integrate any access control systems. These CE certified barriers are the best suited products for pedestrian control in affordable price. These barriers can support different access control systems like finger print access controller, face recognition reader as well as card readers. These swing barriers can be mounted with display, passage counter, card reader, alarm system against unauthorised entries, interfaced with PC. The unique arm feature provides a fail-safe safety solution in case of emergency or power failure.

MAIN FUNCTION AND FEATURES

1. Sleek and magnificent design used to control the pedestrian flow smoothly.
2. Housing and barrier arm is made up of splash proof SS 304.
3. Recommended for heavy passage flow & gateway for outsider entry.
4. With in – built sensors crawling can be avoided.
5. Smooth finishing without exposure to screws.
6. The barrier gate can be set to delay closing in 1 – 60 sec after a valid card closing.
7. Double anti clipping function, photocell anti clipping and mechanical anti clipping.
8. The metallic flaps are specially design to prevent the passengers getting harmed passing cross.
9. Auto reset function: if no passage during identified card reading time, the system reset automatically the passenger are prohibited to pass until their second identified reading.
10. Arrows for direction indication are provided at the top for easy access.

TECHNICAL SPECIFICATIONS

Power Supply : 100–240Vac
Operating Voltage : 24 V
Frequency : 50Hz
Power Consumption : 30W
Unlock Time : 0.2 sec
Transaction Rate : 35 Person/min
Passage Width : ≤800mm one side
Operating Temperature : -20 to~60°C
Working Environment : Indoor/Outdoor (If Roofed)
Protection Level : IP55
Dimensions(L*W*H) : 1200*280*980mm
Packaging Dimensions(L*W*H) : 1260*340*1100mm
Net Weight : 50kg
Gross Weight : 70Kg

APPLICATION

• Amusement parks
• Stadiums
• Factory premises
• Corporate offices
• Metro station
• Banking
• Corporate offices
• Airports
• Government establishments

OUR ADVANTAGES

1. Our Factory has more than 20 years of OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.

OPTIONAL ACCESSORIES

Access Card Reader
Face Reader
Biometric Reader
Remote Control with Receiver
Push Button
Key Switch
