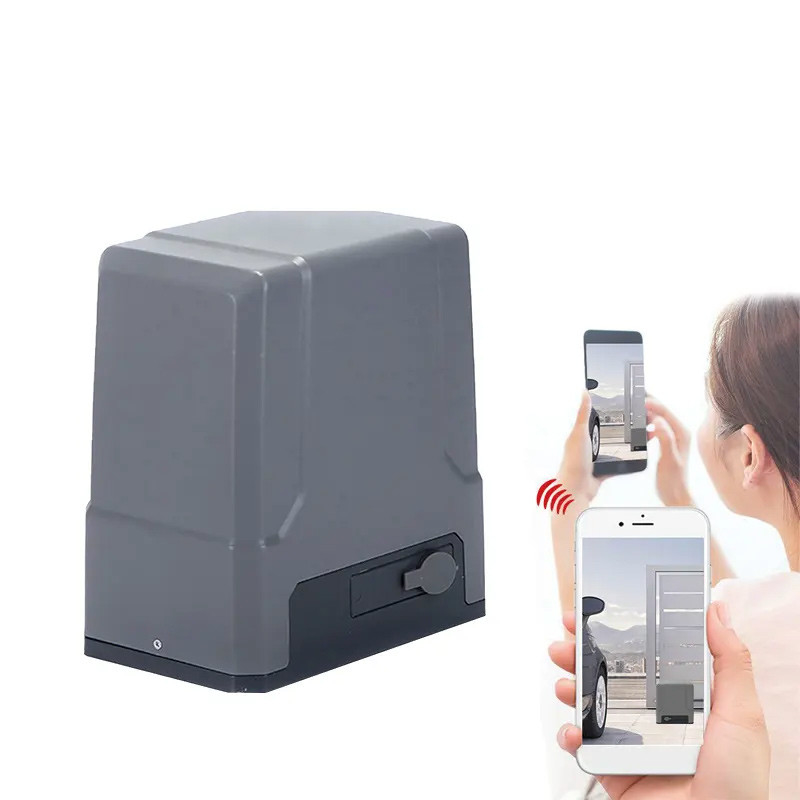

Solar Panel Power Slide Gate Operators 800kg 170W Rechargeable Battery
  • Solar Panel Power Slide Gate Operators 800kg 170W Rechargeable Battery
  • Solar Panel Power Slide Gate Operators 800kg 170W Rechargeable Battery
  • Solar Panel Power Slide Gate Operators 800kg 170W Rechargeable Battery
Solar Panel Power Slide Gate Operators 800kg 170W Rechargeable Battery

Solar Panel Power Slide Gate Operators 800kg 170W Rechargeable Battery

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SL800DC
Product Details
Power Supply:
AC110V/220V(±10%)， DC24V
Motor Power:
170W
Built-in Battery:
12V/9Ah
Packing Weight:
11kg
Packing Material:
Carton
Limit Switch:
Magnetic
Highlight:

Solar Panel Power Slide Gate Operators

,

800kg Slide Gate Operators

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
2,000 pcs per month
Product Description

PRODUCT DESCRIPTION



The SL500DC/SL800DC gate opener designed for residential use, weight up to 500/800 Kg and operating

distance up to 10 meters. Compact structure, novel appearance, easy installation, cost-effective.Built in

control board.with battery backup.



OUR ADVANTAGES

  • Electromechanical DC24V motor.
  • Backup battery.
  • Solar system compatible.
  • Keypad / single button interface.
  • Alarm lamp, photo beam & safety beam interface.
  • User can select auto-close function.
  • Soft start and slow stop.
  • Auto-reverse function when hitting obstacle during closing. (Smart version)

Manual key release design for emergency purposes.



DETAILED PRODUCT DESCRIPTION

  • Integrated structure of motor and battery makes installation more convenient.
  • No future troubles to worry about limit switch installation.
  • Make gate running more smoothly,extend its service life.Speed and distance are adjustable according to the installation.
  • Indicator light feeds back the error information timely makes installation and testing easier.
  • Anti-clip function when hitting the obstacles protects life and property safety better.
  • Auto-stop function when battery power is low to avoid damaging the battery due to excessive discharge.
  • Infrared protection device can be optional connected to ensure the passing safety.
  • Auto-close function can be set on demand.

TECHNICIAL SPECIFICATIONS

Unit Model SL500DC SL800DC
Power Supply 220V,50Hz;110V,60Hz
Max. Gate Weight 500KG 800KG
Motor Power DC24V,150W DC24V,180W
Gate Moving Speed 16-18 m/min
Limit Switch Electronic limit switch
Recording of up Remotes 100
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 15min
Noise ≤58dB
Work Temperature -20°C~70°C
Gross Weight 10KG 11KG
Battery Specification 12V/9Ah





Packing & Delivery

Packaging Details: cartons and foam cover. Pallet for bulk order.

Delivery Detail: Shipped in 7 days after payment for sample order; bulk order depends on order quantity.

Solar Panel Power Slide Gate Operators 800kg 170W Rechargeable Battery 0



FAQ

Hi,dear customer,Please kindly find the answers below

1.What's your best price ?
The price is depend on your order quantity,Regularly our price is lower than other supplier for most items,under the condition of using the same original material.we sincerely hope to develop mutual-beneficial business with you.
2.How can I get samples? Is that for free?
You can contact us by trademanager or send us an inquiry by email on the bottom of the product description page.Regularly we will reply within 24 hours.
We do not offer free sample.
3.Any certificate?
yes,CE & Iso9001:2008
4.How to order?
STEP 1 - Please send us an inquiry and advise your requirements,such as :material,model,quantity,color and other necessary details.and plsease provide the company name and address at the same time.
STEP 2 - You will received the best price based on your quantity.
STEP 3 - The preforma invoice will be send to your email if the price and other details are confirmed.
STEP 4 - Make down the prepayment or full payment,then we will arrange the production.balance need to be paid before shipping.
STEP 5 - We take the photos for your reference,make relevant documents,keep tracking of the shipping until they reach you safely.



1. who are we?
We are based in Shenzhen, China, start from 2002,sell to more than 100 hundred countries and territories. There are more than 100 staffs in our company.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

  • Access control turnstile
  • Pedestrian barrier gate
  • Road bollard, road blocker, tyre killer
  • Parking lock
  • Sliding gate operner, swing gate opener

4. why should you buy from us not from other suppliers?
SINOMATIC Company is a manufacturer specializing in research and development, production and sales of various types of automatic gate intelligent systems, having 20 years working experience in the solution of gate automation and access control.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union, Ali pay etc.
Language Spoken:English,Chinese


FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.
SL500DC, SL800DC User Manual (Magnetic Limit Switc...
