Sliding Gate Operator
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SL1000AC |

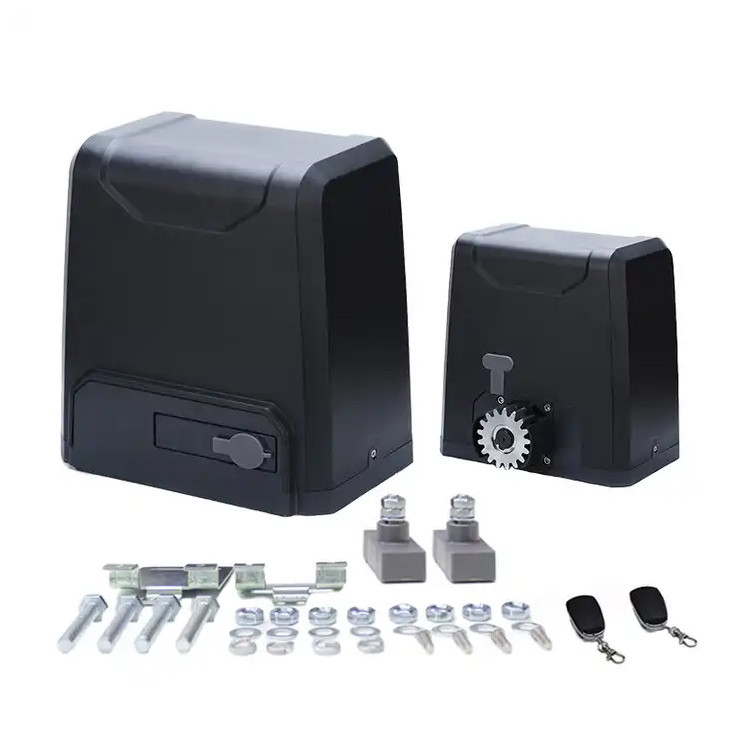

Electric Gate Control Sliding Gate Motor SL1000AC 1000KG Sliding Gate Opener
Product description
SL800AC/SL1000AC/SL1500AC/SL2000AC sliding gate opener is applicable to gate weight less than 800kg/1000kg/1500kg/2000kg, and length of the sliding gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
Product application
A variety of public access doors, campuses, factories, office buildings, shopping malls, parking lots, etc. Realize contactless automatic door opening and closing.
Product advantages
A. Compatible with a variety of access control systems: Access to infrared sensors, human body sensors, remote control, face recognition attendance machine, ICID card reader, button switch, mobile phone Bluetooth and other switch signals of access control system, so as to automatically open door and automatically delay close door .
B. The holding time, speed and strength of the door can be adjusted within the allowable range.
C. This equipment has the function of resistance reversal, and can also be added with infrared induction for the
second protection.
D. It has the function of fire fighting linkage.
TECHNICIAL SPECIFICATIONS
| Model | SL1000AC |
| Driven Mode | Gear |
| Opening Speed | 13m/min |
| Motor Power | 400W |
| Remote Control Mode | Single button |
| Output Torque | 22N.m |
| Work Duty | S2 20min |
| Limit Switch | Magnetic or spring limit switch |
| Max. Gate Weight | 1000KG |
| Opening Speed | 13m/min |
| Remote Control Range | ≥30M |
| Recording of Up Remote Controls | Max. 25 remote transmitters |
| Frequency | 433.92Hz |
| Noise (No Load) | ≤58dB |
| Output Shaft Height | 50mm |
| Working Temperature | -20℃~70℃ |
| Power Supply | 220V/50Hz(Optional: 110V/60Hz) |
| Package Weight | 13KG |
| Standard Configuration | 1 motor, 1 built-in control board, 2 remote controls, 2 keys |
| Optional Accessories | Photocell, steel gear rack, alarm wall lamp, wireless keypad, wireless wall button |
MAIN FEATURES AND FUNCTIONS
1. AC motor with built-in control unit
2. Keypad/single button interface
3. Alarm lamp, photo beam and safety beam interface
4. User can select auto-close function
5. Soft start and slow stop(smart version, optional)
6. Auto-reverse function when hitting obstacle during closing(smart version, optional)
7. Manual key release design for emergency power failure
8. Gear driven with built-in control board.
9. RF Hopping Code Technology prevents your remote code from being accessible to others.
10. In case of a power outage or an emergency you may also use manual release key.
11. The remote control has 4 buttons, corresponding to open/close/stop.
12. You can add up to 25 extra remotes that can control this system.
Main engine installation
a) Dismantle the plastic housing on the main engine before installation and keep the relevant
fasteners properly;
b) Please prepare the power line for connecting the mounting plate to the main engine (the number
of power supply cable cores should not be less than 3 PCS, the sectional area of cable core should
be over 1.5mm² and the length should be determined by users according to the situation on
installation spot)
c) Please unlock the main engine before installation, the unlock method is: remove the rubber key
cover, insert the key, and open the manual release bar till it rotates by 90° as shown in Figure 5.
Then turn the output gear and the gear can be rotated easily;
FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.
