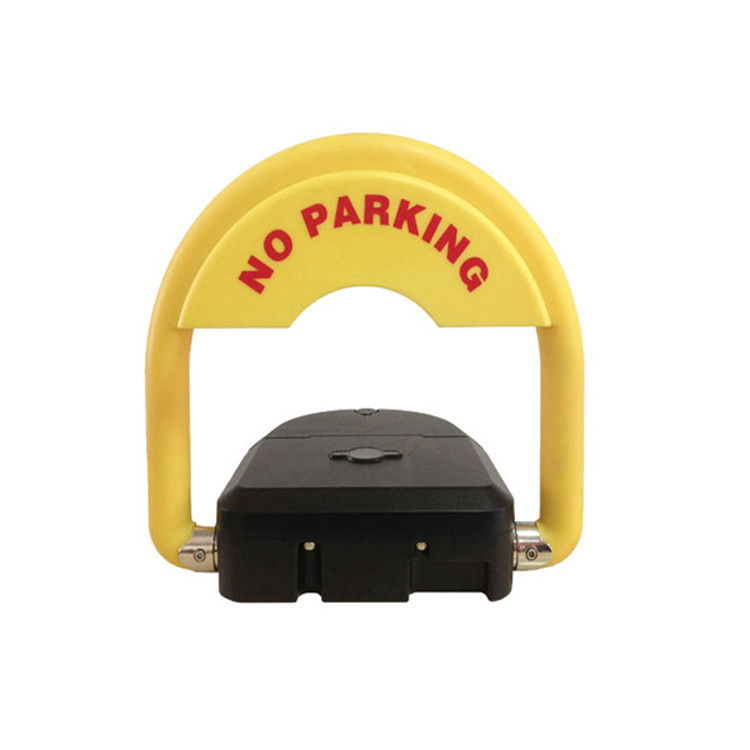

Bluetooth Remote Control IP68 Protection Level Automatic Car Parking Barrier Lock
PRODUCT DESCRIPTION
Parking lock is the newly-developed product by our company. The cabinet of the parking lock is coated with high-class varnish with features of glossiness and fast color. The product has attributes like beautiful and novel structure designing, user-friendly, diversified functions, safe and durable operation. It is well applied for car parking management in areas like high-end residences, shopping malls, hotels, airports and other commercial places.
| Item | Specifications |
| Overall Dimension | 357*370*82.5mm |
| Working Temperature | -30°C~60°C |
| Working Voltage | DC12V |
| Battery Voltage | DC12V, 7Ah |
| Operational Current | 0.4A |
| Running Time | 4-6s |
| Remote Control Distance | ≤15m |
| Vertical Position Height | 340mm |
| Horizontal Position Height | 82.5mm |
| Maximum Bearing Weight | 5 Tons |
| Protection Grade | IP68 (the highest level in Ingress Protection) |
FUNCTIONS AND FEATURES
---- Energy-saving: the battery is a best product in China and the power in it will last for half a year.
---- Hermetic: the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
---- Auto-repositioning: the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
---- Noise-free: bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
---- Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
---- Safe: the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.
---- Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
---- Emergency manual: Manual operation is available when the lock happens to fail or have no electricity.
---- Dark indicator: In dark both ends of the berth shine red to remind the passersby to avoid, thus preventing accidents.
---- Charge reminder: When the accumulator discharges to some extent, the internal reminder warns the subscriber to recharge the battery cell.
---- Burglarproof: the mounting bolts are placed inside of the cabinet. No one can open it without key.
---- Waterproof: The control system and external connection are sealing waterproof.
TECHNICIAL SPECIFICATIONS
| 1 | Voltage | DC12V |
| 2 | Battery | DC12, 7Ah |
| 3 | Dimension | 357×370×82.5mm |
| 4 | Extended Height | 340mm |
| 5 | Remote Distance | ≤30M |
| 6 | Working Temperature | -35℃~+55℃ |
| 7 | Current | 0.4A |
| 8 | Weight Born | 5t |
| 9 | IP Class | IP68 |
| 10 | Running Time | 4~6s |
| 11 | Protect level | IP68 |
| 12 | parking guard battery life | 4 to 6 months |
| 13 | parking guard battery | rechargeable |
| 14 | Packing size | 550*120*100 mm |
| 15 | Weight | 8.5kg |
| 16 | thickness | 3.5MM |
PRODUCT INSTALLATION
A. Installation Spot: It is suggested to install the parking lock at the very center of parking seat.
B. Installation Ground: To install the parking lock in a dry and smooth concrete ground, and no radio signal interference
around.
C. Installation Steps: Drill four corresponding holes 10*5 mm in the ground and use four expansion bolts prepared in the
package to fasten it. (as the following drawings show)
| MOQ | 1 set |
| Port | Shenzhen, Guangzhou and others |
| Payment terms | T/T ; MoneyGram; Western union; Credit card; Ali pay etc. |
| Producing capacity | 3000 Sets/Month |
| Leading time | 5 days |
| Package | Carton box |
FAQ
1.How many models parking lock do you have?
-------- New Zine-alloy Parking Lock model, Solar Parking Lock model, Common parking lock.
2.How many remote controls are in each parking lock?
-------- 2 pcs.
3. What is the waterproof grade?
-------- IP68.
4. Can express delivery the parking lock?
-------- Yes, the express could deliver the parking lock , but we need to take out the parking lock battery. As you know, the express shipping company is strict to send the battery.
5. What's you warranty?
-------- 1 year time warranty.
