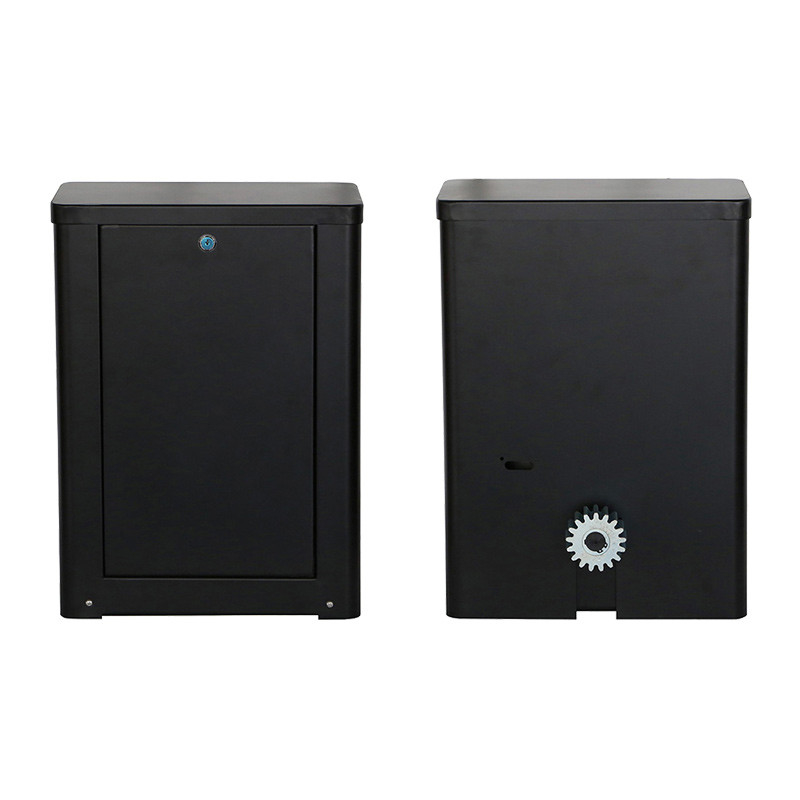

Heavy Duty Encoder Limit Sliding Gate Opener Frequency Converter 4000kg Gate Weight

Heavy Duty 380V 50Hz 1500W Motor Power Frequency converter 4000kg Gate Weight Encoder Limit Sliding Gate Opener

Product description

SL4000BP sliding gate opener is applicable to gate weight less than 4000kg.The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.

Main technical parameters

MAIN FUNCTIONS AND FEATURES
1.Frequency inverter control unit.
2.Keypad / single button interface.
3.Alarm lamp, Photo beam & safety beam interface.
4.User can select auto-close function.
5.Auto-reverse when hitting obstacle during closing.
6.manual release design for emergency purposes.
7.Thermal protection built in motor winding.
8.There is a cover protection for the gear, it’s more safe.
9.Turbine and worm drive setup, working steadily.
10.Soft-start and slow-stop technology, auto-reverse function.
11.Multiple interfaces(infrared, solar, Bluetooth, alarm lamp, camera, external buttons, etc.)
12.Assemble easily. In case of power failure, the gate can be opened and closed manually after release clutch.

Preparation work before installation

Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.

Cable installation

In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor & power cable and controlling cable separately with two PVC tubes.

Concrete pedestal

Please precast a concrete pedestal with the size can firmly install the gate opener. Please make sure the distance between the gate and gate opener is appropriate before casting the pedestal.

Preparation before installation

a)Before installation, remove the metal casing on the main engine and properly keep the relevant fasteners;

b)Due to the different installation environment, users are required to prepare their own power cables to connect the installation base plate and the host machine (220V power wire cores shall be no less than 3 cores, 380V power wire cores shall be no less than 4 cores, and the sectional area of the wire cores shall not be less than 1.5mm, the length shall be determined by the user according to the situation of the installation site);
