Swing Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-ISB10 |

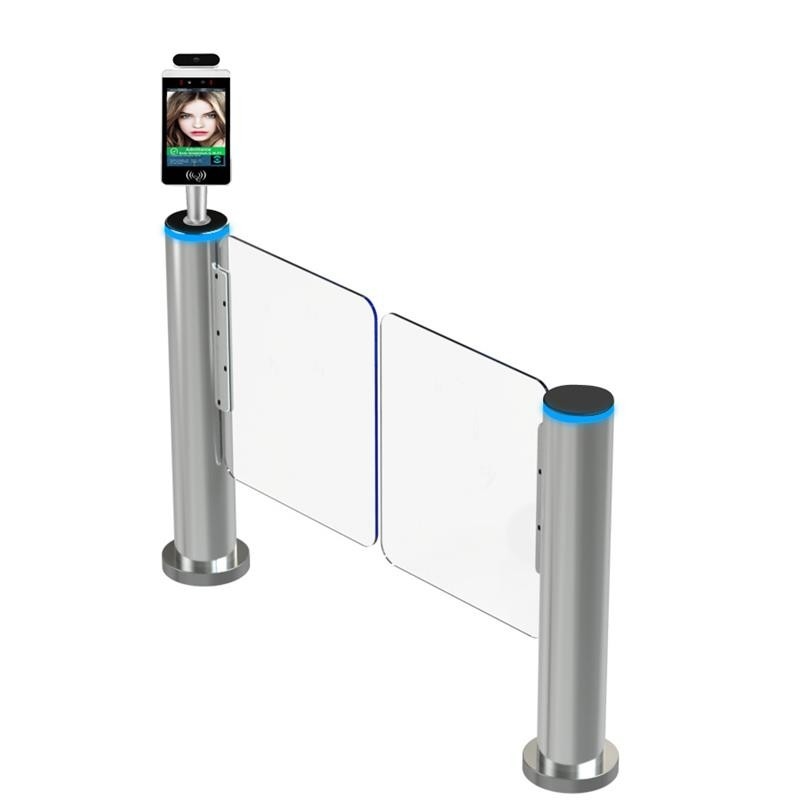

Face Fingerprint Recognition System RFID Card Reader DC Brushless Motor Acrylic Glass Rotating Swing Barrier Turnstile
GENERAL DESCRITPION
The Integrated swing gate is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
TECHNICIAL SPECIFICATIONS
|
Model
|
SN-IPS10
|
|
Power
|
AC220V±10V/110V±10V,50/60HZ; DC24V
|
|
Operating Temperature
|
-45℃-60℃
|
|
Relative Humidity
|
≤95%, No Condensation
|
|
Passage Width
|
Max.900mm(single unit); Max.1800mm(a pair);
|
|
Passing Speed
|
Normally open-40 persons/min; Normally closed-30 persons/min
|
|
Motor
|
DC Brushless motor, 140W/24V; Servo motor optional
|
|
Gate Opening and Closing time
|
≤ 0.4S
|
|
Infrared Sensors
|
No
|
|
Working Environment
|
indoor and outdoor(added the rainshed )
|
|
Motor Operation Speed
|
1600R/Min
|
|
Communication Distance
|
≤1200M
|
|
Input Connection
|
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
|
|
Communication Connection
|
RS485 Communication
|
|
Barrier Material
|
Acrylic glass, SS304 and so on
|
|
Material
|
Stainless steel 304,thickness is no less than 1.5mm
|
|
Running Life
|
5 Million(Continuous Opening and Closing Operation)
|
|
Protect Level
|
IP54
|
|
Colour
|
SSB(US32D)-tainless Steel Brushed / PowderCoating(Optional), or other Colour you like
|
|
Operation Place
|
Subway Station, Hoverport, TourismSports,Exhibition, SwimmingHall,Residence Area,Enterprise's Entrance and ExitAttendance,Gateway Guard,Charge Management,Special AccessControl
|
MAIN FUNCTION AND FEATURES
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) The processing mode in emergency or in special conditions.
3) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
4) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
5) Strong system expending capability, available to add new product at any time
6) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you
A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B) To set up operation mode for passage entry and exit.
C) To read card with multiple times, the special function meeting the application requirements of a particular site.
D) To set up the card reading with or without memory.
E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
PRODUCTION PHOTO
FAQ
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year time warranty at least.
