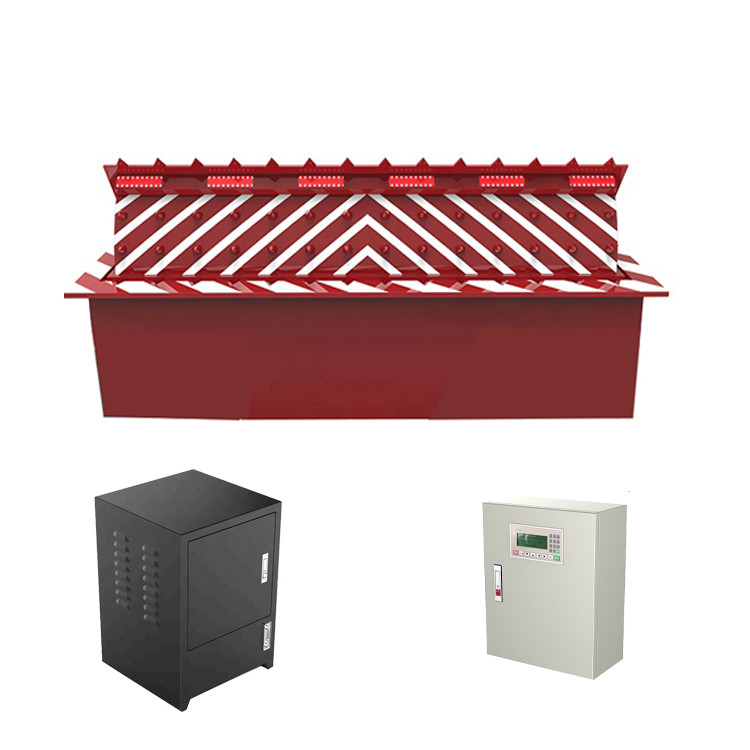

Shallow Mounted Steel Block Body Anti-Terrorist Hydraulic Roadblock
PRODUCT DESCRIPTION
Hydraulic safety roadblockers are ultra-resistant and dissuasive physical obstacles. These steel blocks emerge from the ground, at several heights, in order to provide protection for the most sensitive sites.
Often installed on administrative sites or official buildings, such as embassies, penitentiary centers or high administrations, they reinforce security and can be associated with other objects of perimeter management (automatic lifting barriers, retractable automatic bollards, etc.) .
PRODUCT PARAMETERS
|
Rising time
|
1-3s (Adjustable)
|
|
Dropping time
|
1-3s (Adjustable)
|
|
Dimension - Length
|
3-6m (On request)
|
|
Width
|
1000mm
|
|
Height underground
|
760mm
|
|
Rising height
|
500mm
|
|
Spikes
|
φ30mm*90mm (Optional)
|
|
Panel/Housing/Spikes
|
A3 Steel
|
|
Panel thickness
|
16(default) /20mm &25mm optional
|
|
Surface color (Customizable)
|
Red/Green/Yellow/Black
|
|
Anti-rust treatment
|
2 layers spray paint
|
|
Reflective tape
|
White/Black, Yellow/Black etc
|
|
LED warning light
|
RGB, various dynamic mode
|
|
Hydraulic actuator
|
Electric & Manual pump integrated
|
|
Power supply
|
380VAC
|
|
Power consumption
|
3.75KW~5.5KW
|
|
Shock-reducing
|
Yes
|
|
Industrial hydraulic tank
|
80L~120L
|
|
Hydraulic hose
|
Conical sealing, high pressure
|
|
Ambient temperature
|
-35℃~75℃
|
|
Bearing capacity
|
0-100tons
|
TECHNICIAL SPECIFICATIONS
1. System: hydraulic
2. Voltage: 3 phase 380V(control voltage DC24V)
3. Rising time: 1S to 3S (adjustable)
4. Working temperature: -35℃ to 75℃
5. Material: A3 steel, spay anti-rust paint
6. Weight: ± 1.2Tons
7. The road blocker has a buffer function
8. LED light color: red, blue, green, yellow, purple, white etc.(total 20 colors are available)
9. In case of power outage, the blocker can be manually raised and lowered.
10. Remote control distance: 50 to 100mm (depends on the environment)
11. Device running noise: ≤60 decibel
12. Control solenoid valve :24v
PRODUCT APPLICATION
Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.
OPTIONAL DIMENSION
L2000*W1000*H760,Rising height:500(Customized)
L2500*W1000*H760,Rising height:500(Customized)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)
CASE REFERENCE
Professional installation instruction
*Easy-to-install, easy-to-maintain is what we pursue.
*We provide detail & professional installation instruction (in English) to make your construction much easier. With all the technical data, dimension and etc.
*Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.
