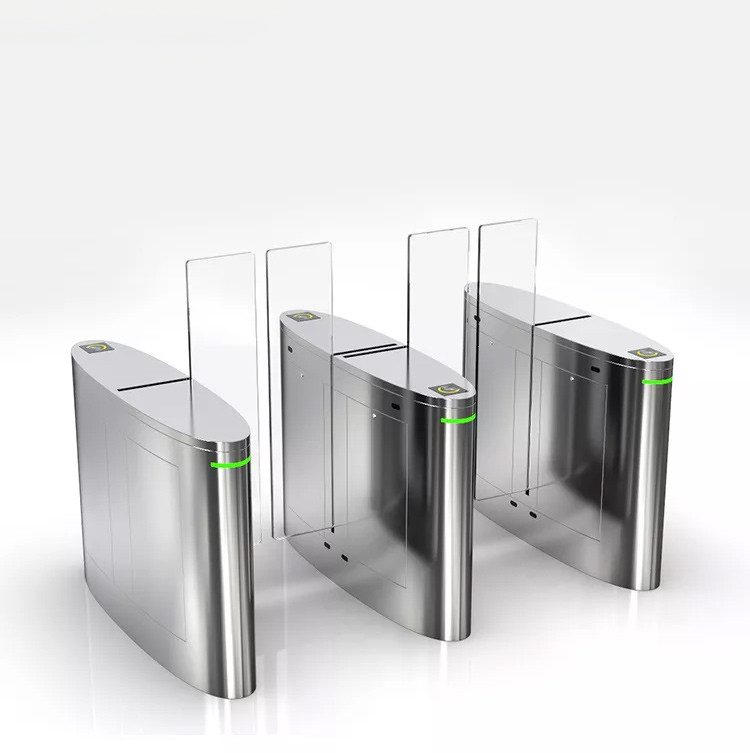

High Security Access Control Turnstiles Pedestrian Entry Exit Optical Sliding Turnstile

Highest Security Level Control Pedestrian Entry/Exit Optical Sliding Turnstile

PRODUCT DESCRIPTION

Optical sliding turnstile is with highest secure to control pedestrian entry/exit, the glass on top cover is to prevent people climbing over and the arms can't be forced open.


The marble materials on the top make the turnstile gate more warm, bright, and reinforce the aesthetic of application scenarios.
the glass is customizable and maximum height is up to 1.6m.

The system is with 4 pair infrared sensors to play anti-intrusion, anti-reverse and anti-trailing function.
It can integrate with different third-party access controller or (e.g.: RFID card reader, biometric reader device and counter).

TECHNICIAL SPECIFICATIONS

PRODUCT ADVANTAGES

The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.

It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).

In case of emergency, the Optical Turnstile arm will open automatically to allow free passage. Optical Turnstiles are suit for elegant and luxury entrance solutions.

DETAIL FUNCTION AND FEATURES

1. Fault detection and alarm functions, easy to use and maintenance

2. The running status can be programmed and controlled with the built-in keyboard on the main board

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset)

4. Anti-breakthrough function. The gate is locked automatically until opening signal received

5. Support infrared photocell for anti-pinch and reset function

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically

7. Gate can be set as normally open or normally closed

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller

needed)

9. Direction can be set as single-direction or bi-direction

10. LED direction indicator

11. Gate auto opens when power off and auto close when power on

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
