Sliding Gate Operator
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SL800AC |

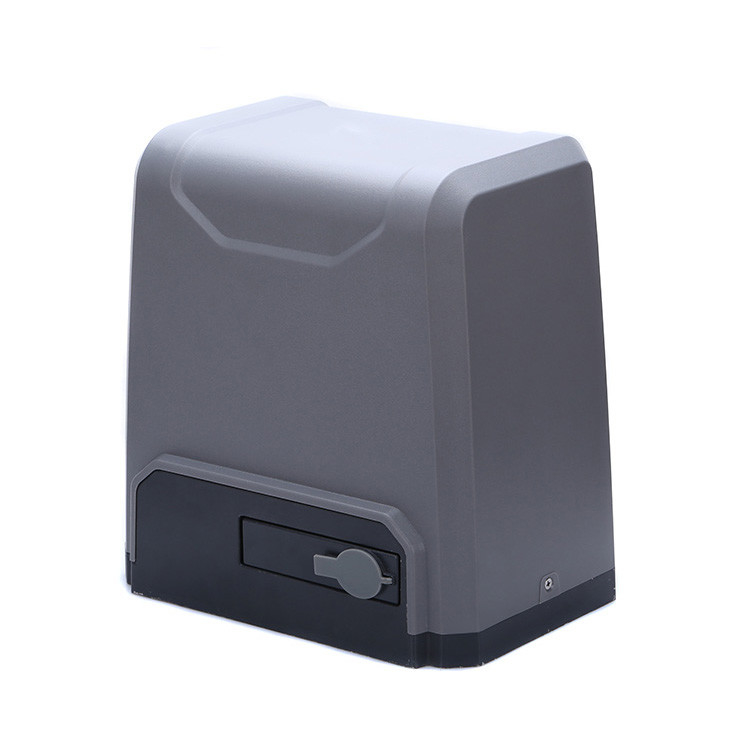

800KG Heavy Duty Steel Nylon Gear Driven Automatic Sliding Gate Opener Kit SL800AC
PRODUCT DESCRIPTION
The SL800AC/SL1000AC/SL1500AC/SL2000AC gate opener designed for commercial and industrial use, weight up to 800/1000/1500/2000Kg and operating distance up to 12 meters.
PRODUCT ADVANTAGES
Standard unit
*gate motor
*control board & box
*2pcs remote controls
*manual release key
*user manual
*bolts & nuts
PRODUCT MAIN FEATURES
1. AC motor with built-in control unit
2. Keypad/single button interface
3. Alarm lamp, photo beam and safety beam interface
4. User can select auto-close function
5. Soft start and slow stop(smart version, optional)
6. Auto-reverse function when hitting obstacle during closing(smart version, optional)
7. Manual key release design for emergency power failure
8. Gear driven with built-in control board.
9. RF Hopping Code Technology prevents your remote code from being accessible to others.
10. In case of a power outage or an emergency you may also use manual release key.
11. The remote control has 4 buttons, corresponding to open/close/stop.
12. You can add up to 25 extra remotes that can control this system.
TECHNICIAL SPECIFICATIONS
| Type | SL8000AC | SL1000AC | SL1500AC | SL2000AC |
| Power Supply | 220V/50Hz; 110V/60Hz | |||
| Max. Gate Weight | 800Kg | 1000KG | 1500Kg | 2000KG |
| Motor Power | 370W | 400W | 550W | 750W |
| Gate Moving Speed | 11-13 m/min | |||
| Limit Switch | Spring (mechanical) / magnetic | |||
| Recording of up Remotes | Standard control board: 25; Intelligent control board: 40 | |||
| Decoding / Frequency | Rolling code / 433.92MHz | |||
| Work Duty | S2 20min | |||
| Noise | ≤58dB | |||
| Work Temperature | -20°C~70°C | |||
| Warranty |
1. Only original and genuine products. 2. We offer replacement for defective items. 3. Regularly12 month warranty. |
| Service | 1. Regularly questions will be responded positively within 24 hours except holidays. 2. OEM acceptable. Customized as your requirements. |
FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.
