Vehicle Pedestrian Target Radar Detector High Speed Real Time Processing

Millimeter Wave Band High-Speed Real-Time Processing Vehicle And Pedestrian Target Radar Detector

Technicial specifications

Product description

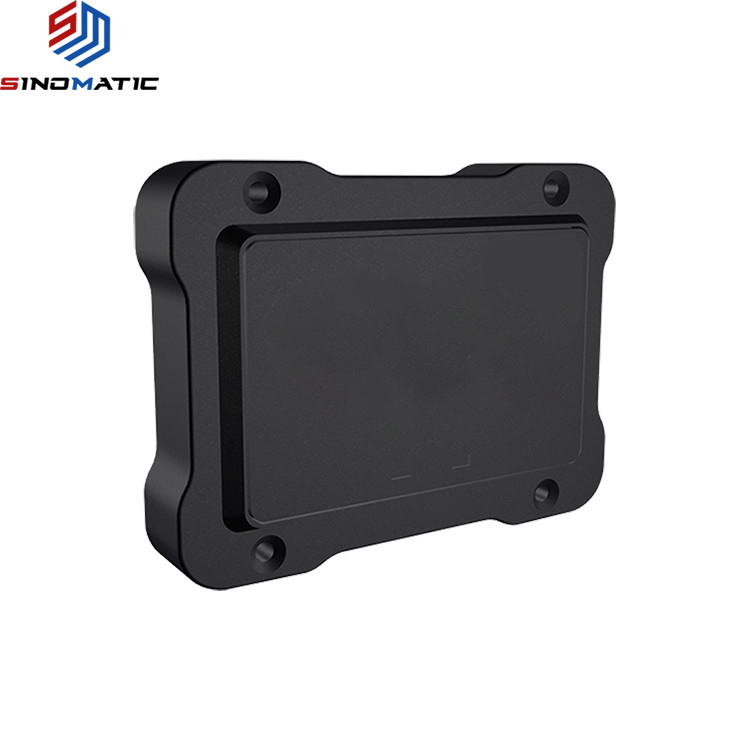

Shenzhen Sinomatic Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band. The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing on the target's reflected echoes to achieve fast target Detection.

The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.

Installation Guide
The radar detector is directly installed on the outer surface of the barrier chassis, and the radiation direction of the radar detector is perpendicular to the entrance or exit direction of the channel.
The installation height of the radar detector is about 0.6m from the center of the radar detector to the ground, and the fixed size of the barrier radar detector is 67mm×67mm, which is connected to the barrier gate cabinet by 4 M4×35 screws

Key Features

1 Blind Zone without Detection Distance

The closest distance of the radar detection target of the barrier gate is zero, which truly realizes the work without blind spots.

2 All-weather Work

The working signal of the barrier radar detector is in the millimeter wave frequency band, with no need for special heat dissipation. Under the weather conditions such as rain, snow, hail, haze, etc., it has the ability to work continuously day and night. The detector shell has IP-65 waterproof requirements, there is no need to worry about rainwater entering the radar and causing radar damage.

3 Detection Accuracy

With millimeter wave working signal, radar detector has high working frequency, directional accuracy and strong anti-interference and so on excellent performance. The radar is not interfered by the outside world and does not cause interference to outside electronic

equipment. The signal propagation attenuation is large, and the radiation signal strength is in line with National environmental protection requirements. The detection rate of different types of vehicles (including cars, trucks, and aluminum vehicles) is higher than 99.9%. When

the vehicle and the barrier radar are at a large angle, they can be reliably detected. The detection rate of pedestrians is higher than 99.9%.

4 Work Reliability

The radar detector shell adopts a waterproof design that conforms to the IP-65 standard. The product has low power consumption, adapts to extreme high and low temperatures, and works continuously day and night. Under normal operating environmental conditions, the product will not be accidentally damaged.

5 Installation Flexibility

The barrier radar detector is installed and fixed on the outer surface of the barrier machine, and vertical irradiation passes through the gate of the vehicle or pedestrian. The installation is very convenient and flexible. For the gate openings of different widths, the radar has the

convenience of setting different sensing distances through the DIP switches, eliminating the inconvenience of adapting to different distances by relying on computer downloading software or delimiting the detection area.

6 Low Cost to Install and Maintain

The barrier radar is easy to install, maintenance-free, highly reliable and easy to replace. It not only overcomes the problems of high construction cost and maintenance difficulties for the installation of the ground sense coil that needs to damage the road surface by personnel, but also solves

the problem of barrier rod control.

7 Convenient Power Supply

The barrier radar detector adopts standard 12V DC power supply, which can adapt to the 6V~18V power supply voltage range, adapt to large voltage fluctuations, and the power supply current requirement is not large. It can be directly powered by the barrier control

panel, without the need for a separate power supply device.

8 Use Environment Adaptability

The barrier radar detector adopts the environment automatic detection technology, without human operation, and can meet the application of straight pole barrier and billboard/fence barrier.

2.1 Specifications
* Center Frequency: 24 GHz;
* Vertical Detecting Width: 43°;
* Horizontal Detecting Width: 11°;
* Coverage Range: 0 m～6 m;
* Distance Adjustment Range: 2.0 m～6 m (8 levels);
* Response Time: 100ms;
* Signal Output: switching value.

2.2 Detection Accuracy
* Vehicle Inspection Miss Rate: 0.1%;
* Pedestrian Detection Miss Rate: 0.1%;
* False Detection Rate: 0.05%.

2.3 Mechanical Properties
* Dimensions: 105 mm×78 mm×26 mm;
* Weight: 85g;
* Waterproof: IP65
* Supply Voltage Range: DC 6V～18V
* Supply Current: less than 90 mA/12V.
* Operating temperature: -40℃～+85℃;
* Humidity: relative humidity 99% at 25℃.

2.4 Reliability
The equipment can work continuously day and night under the specified conditions, and the Mean Time between Failure (MTBF) meets: MTBF≧15000 h.

Key Features

a) Blind Zone without Detection Distance
b) All-weather Work
c) Detection Accuracy
d) Work Reliability
e) Installation Flexibility
f) Low Cost to Install and Maintain
g) Convenient Power Supply
h) Use Environment Adaptability

Installation Instructions

a) According to the application type of straight pole or billboard barrier, determine the installation direction of radar detector ;

b) Drill 4 screw holes with a diameter of Φ4.8 and a cable hole with a diameter of Φ5.5 on the mounting plate of the radar detect

c) After the cable is covered with a sealing ring, it is connected to the body of the barrier gate cabinet through the cable hole, and 4 screws are inserted into the fixing hole of the radar and the sealing ring is covered, and then the radar is connected to the mounting plateP a g e | - 8 -
in turn;

d) Put washers and fixing nuts on the four connecting screws in order and tighten them to ensure that the radar is fixed reliably. For straight boom barrier and barriers with billboards/fences, the installation method of the barrier radar is different.
