Sliding Gate Operator
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SL4000BP |

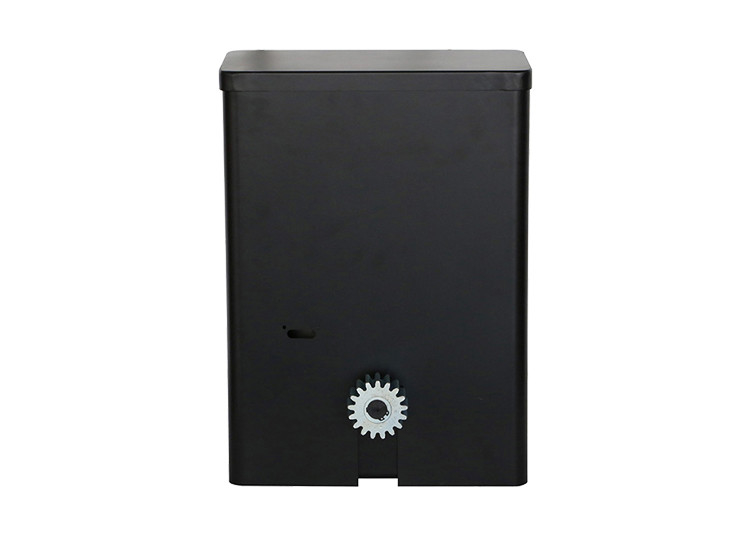

Heavy Duty 380V 1500W Motor Power 4000KG Gate Weight Automatic Sliding Gate Operator
Product description
SL4000BP sliding gate opener is applicable to gate weight less than 4000kg.The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
Main technical parameters
| Unit Model | SL4000BP |
| Power Supply | 380V,50Hz |
| Max. Gate Weight | 4000KG |
| Motor Power | 1500W |
| Control Unit | Frequency Inveter |
| Gate Moving Speed | 10 m/min |
| Limit Switch | Encoder |
| Recording of up Remotes | 400 pcs |
| Decoding / Frequency | Rolling code / 433.92MHz |
| Work Duty | S2 20min |
| Noise | ≤60dB |
| Work Temperature | -20°C~50°C |
| Gross Weight | 53 KG |
FUNCTIONS AND FEATURES
1.Frequency inverter control unit.
2.Keypad / single button interface.
3.Alarm lamp, Photo beam & safety beam interface.
4.User can select auto-close function.
5.Auto-reverse when hitting obstacle during closing.
6.manual release design for emergency purposes.
7.Thermal protection built in motor winding.
8.There is a cover protection for the gear, it’s more safe.
9.Turbine and worm drive setup, working steadily.
10.Soft-start and slow-stop technology, auto-reverse function.
11.Multiple interfaces(infrared, solar, Bluetooth, alarm lamp, camera, external buttons, etc.)
12.Assemble easily. In case of power failure, the gate can be opened and closed manually after release clutch.
Preparation work before installation
Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.
Cable installation
In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor & power cable and controlling cable separately with two PVC tubes.
Concrete pedestal
Please precast a concrete pedestal with the size can firmly install the gate opener. Please make sure the distance between the gate and gate opener is appropriate before casting the pedestal.
