BLDC Motor Automatic Parking Boom Barrier With License Plate Recognition System

BLDC Motor License Plate Recognition System Automatic Parking Boom Barrier

Product description

The product consists of five parts: cabinet cap, cabinet body, transmission mechanism, control unit, and boom. It distinguishes between left and right machines and is used in parking lot entrance and exit control systems.

This product is divided into three types: straight boom barrier, folding boom barrier and fence boom barrier.

Product advantage

• It can be equipped with SN-DZE-BL(1.5-6s) mechanism
• Left-installation and right-installation can be exchanged (Optional)
• Alarm against abnormal lifting boom
• Support 24-hour continuous operation without heating protection
• Speed will reduce when the boom moves to the limited position
• RS485 communication, TCP/IP network port

Product specifications
1. Working temperature (motor): -35℃~ + 80℃
2. Power supply input voltage: AC110~120V, or AC200~240V
3. Controller input voltage: DC24V±10%, 10A
4. Motor power: 200W MAX
5. Relative Humidity: 30%~80%, No condensation
6. Distance of remote control: L≥30M
7. Insulation grade: F

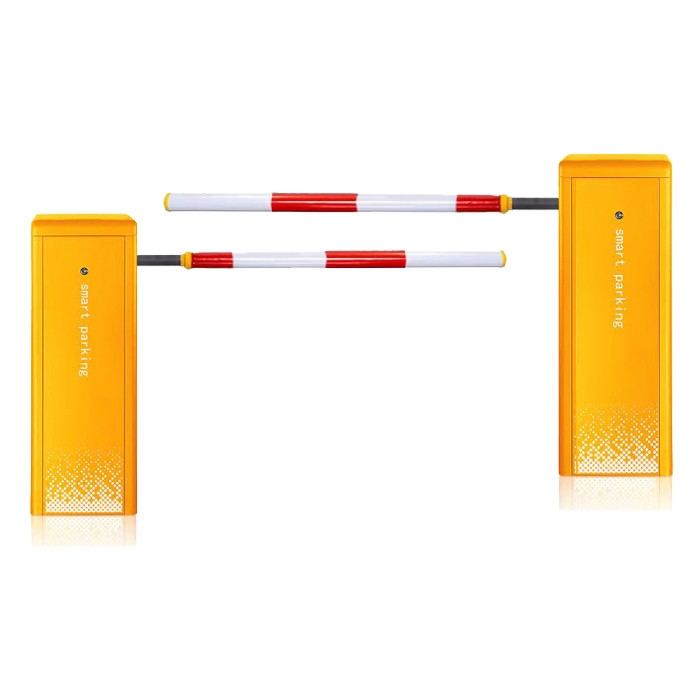

Real product photo

Boom type and speed

Functions & Features

1. Driven by DC brushless motor, equipped with movable connecting rod transmission mechanism and balance spring, stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times.

2. Built-in delay auto-closing and reverse on an obstacle in case of resistance.

3. Support infrared photocell, loop detector, and external radar, and built-in DC12V power output.

4. Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration.

5. When power off, the barrier gate can still work by adding 2 external DC12V batteries. And battery charging module is optional, when power on, the battery will automatically charge.

6. Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.

TECHNICIAL SPECIFICATIONS

FAQ

1. Are you a Trade company or manufacturer for barrier gate ?
-------- We are a manufacturer , welcome to visit our factory , and welcome OEM  products.

2. Sometimes, Why the barrier boom would open automatically? -------- Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

3. How long the Remote-control distance ? -------- In general, most of 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. We recommends using the remote control within 30 meters or 50 meters.

4. Can the barrier gate be used outdoors, even in extreme weathers? -------- Yes, the working temperature is -40℃~+75℃.

5. Is it changeable for the installation direction of the barrier gates? -------- Usually Our DC motor barrier gate can realize this funtions.
