Automatic Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BGA1 |
DC 200w 3s speed black color housing Automatic Advertising Traffic Barrier Gate
Product Overview
Thank you for purchasing the DC bruhsless motor advertising barrier gate. This product adopts the latest mold design
technology, mold die-casting manufacturing technology, double-row five tension springs balance design, long spring life,
good tensile flexibility. Brushless control speed regulation technology, no clutch design, more reliable quality, more
convenient to use, the movement adopts two-stage worm gear transmission, curved crank arm and three connecting
rod structure, UP&DOWN is fast and stable. Easy maintenance and long service life.
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:3s-10s
4 Rated current:9.5A
5 Rated power:250W
6 No-load speed:2500rpm
7 Rated speed:1800rpm
8 Output Power:120N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:4.5M
Product advantage
1. 3second to 8 second open/close time adjustable;
2. Advertising DC brushless motor & 5 million MCBF;
3. 5tension spring balance makes is heavy duty and more durable;
4.Led lights with time swtich ,set a time for light on as you require;
5. Simplified design, easy installation and maintenance reduces your labor cost;
6. Fast finishing time for you to become more competitive at your local market :3-5 days for small order;
7. OEM Brand, Logo, Label available;
8.1year standard warranty, excellent after-sales service;
9. 24h*7d at your service to give you best support;

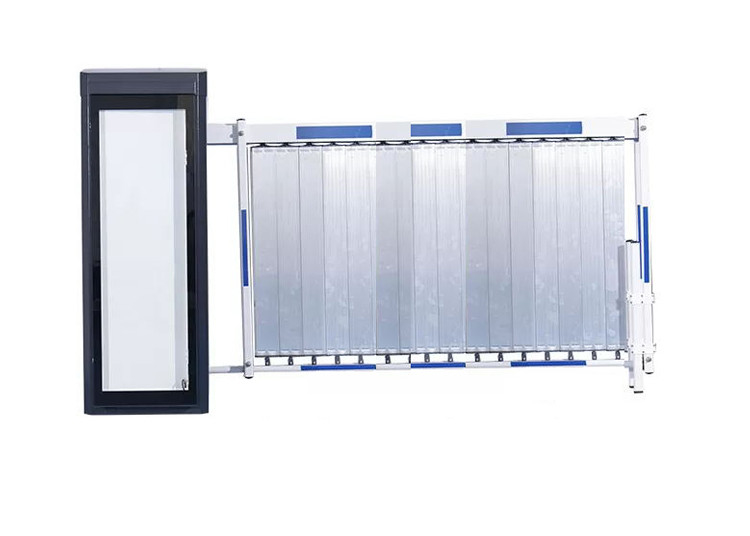

PRODUCT PHOTO
PRODUCT SPECIFICATIONS
| Name | SINOMATIC DC Advertising Gate Barrier |
| Close/Open time | 3s-8s adjustable |
| Arm Type | Advertising Arm |
| Material |
Cold roll plate, 2mm thickness sheet 3 years without rust, shedding and fading |
| Size | 320*280*935 mm |
| Spring And Bearing | more durable, 5 million times through operation testing |
| Rating Power | 200w |
| Rating Voltage | DC 24V |
| Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case
inside with air bubble film for protection |
| G.W | 50 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
| Payment | Sample: full payment
Order: usually 40% advance deposite, balance before shipment |
| Advantages | 1. Professional Manfacturer for more than 10 years
2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
| Application | SINOMATIC Advertising Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle while making profit, for parking lot, shopping center, exhibition center, hospitals,airport ,residential,shopping center,et |
PACKAGE
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
