| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG138 |
Vehicle access control Fast Speed Solar Powered 24V backup battery IP68 protection grade Servo motor Boom Barriers
FUNCTION AND FEATURES
1. Count mode interface.
2. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.
3. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle
and barrier gate machine.
4. Delay down selection function.
5. high sensitivity arm auto reverse function (intensity can be adjusted)
6. Parking system interface
7.RS485 or RS232 network communication control up&down interface (no need to install communication module)
8. Anti-collision alarm signal interface.
9. Arm direction can be changed easily
10. Adjustable speed port (S curve adjustment)
11.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,
restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when
power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
12. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
13. A variety of input and output modes can be selected, normally open normally closed optional.
14. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
15. Closing speed can be adjusted, 0.9S, 1.3S.
PRODUCT APPLICATION
Parking Lots, Toll Gates, Goods Yards, RailwayCrossings,Commercial Premises,Apartment Block Access

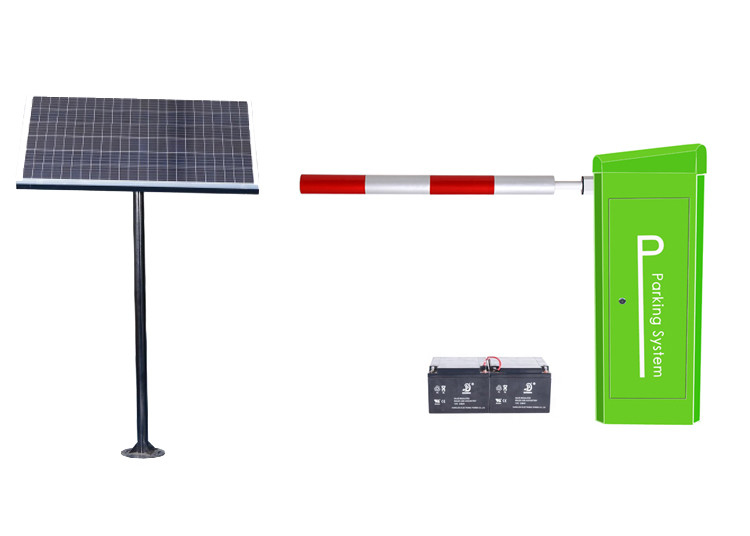

PRODUCT PHOTO
PRODUCT SPECIFICATION
| Speed Time | 0.6s,0.9s,2s,4s,6s |
| Motor Power | 50W,max 100W |
| Boom Length | 2meter to 6meter(max) |
| Working Temperature | -40℃~85℃ |
| Housing Size | 342*312*959*2mm(L*W*H*TH) |
| Lifetime | >10 million times or 10 years |
| MTBF | >5 million times |
| Protection Grade | IP68 |
| Remote Controll Distance | ≤100 meter |
| Motor Speed | 3000 r/min |
| Relative Humidity | ≤90% |
| Running Noise | <50dB |
| Net Weight | 42.6KG |
