Automatic Rising Bollards
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB01 |

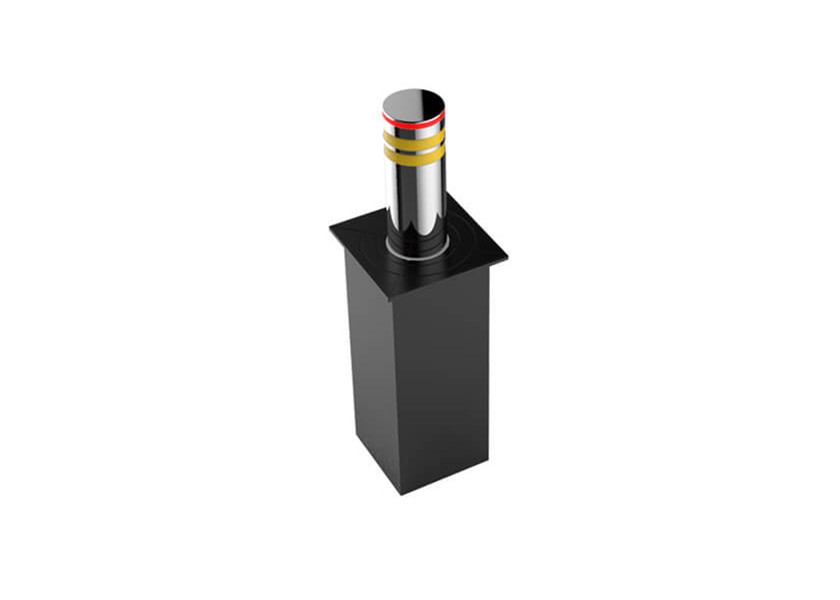

Fast speed 3 second raising time anti-instruction high security entrance hydraulic automatic road bollard systems
INTRODUCTION
This is a high-quality automatic bollard which is used widely to protect security areas from vehicle intrusion.
It is an ideal solution for entrance with high security requirements. Raising time of the bollard is 3 seconds.
Even if the intrusion is from high tonnage vehicle in high speed, the bollard will stop the vehicle easily because
it is so solid that the vehicle will break after impact instead.
There are also some extra safety precautions in the design of the bollard. The LED bar on the bollard can
effectively avoid accidents caused by poor vision of driver at night. In case of power failure, the bollard can
be lowered manually. Equipped with PLC (Programmable Logic Controller), various control methods can be
achieved easily, such as biometric readers, remote control and push button.
The bollard is commonly found in customs, ports, prisons and military bases where traffic guidance is needed
to protect people and property. This product provides ideal access control in areas mentioned above and raises
the level of security.
AUTOMATIC BOLLARD COMPOSITION
PRODUCT PARAMETERS
| Drive unit | Hydraulic |
| Material | 304 stainless steel |
| Diameter | 168mm, 219mm, 273mm, 324mm |
| Rising height | 600mm, 800mm, 1000mm |
| Thickness | 6/8/10/12/15/30mm |
| Raising / lowering time | 3s |
| Weight load | 120t |
| Ingress Protection | IP68 |
| Working voltage | AC110/220V |
| Working power | 350W |
| Working temperature | -35 °C -75 °C |
FUNCTIONS & FEATURES
1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,
4 navigation rods
4. Can be manually lowered in the event of a power outage
5. Linkage interface
6. Reversible operation according to requirements during ascent and descent
7. Noise during operation of the device≤60 dB
8. Waterproof integrated hydraulic drive
9. Control solenoid valve 24V
10. Control box display text adjustable (up, down, start, time control adjustment)
11. Display text in English
12. Water immersion performance:no leakage during 48 hours and normal lifting
13. Anti-corrosion performance level: 9
CASE REFERENCE
INSTALLATION
