Tyre Killer
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TK01 |

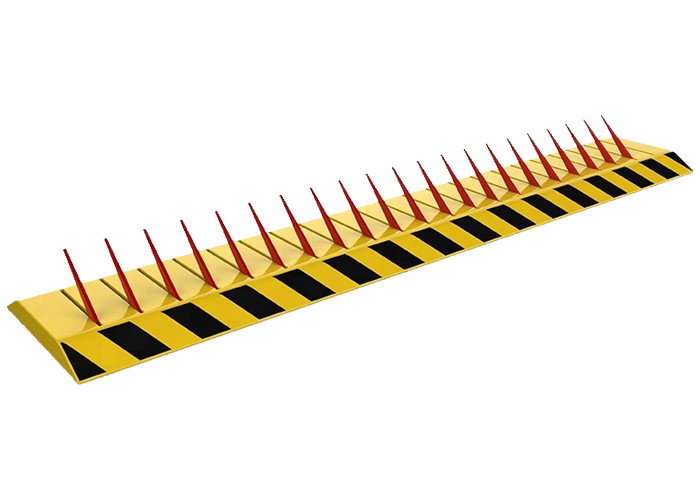

Electric Motor Security Traffic Barrier yellow and black painetd color Tyre Killer
PRODUCT APPLICATION
Our Tire Killer are specially designed for use at sites requiring high levels of security and dealing with
high traffic pressure.
Our products are simple to install and provide excellent level of efficiency in vehicle control.
These are ideally suited for approach entrances to banks, military installations,airports, cash collection depots
and other such organizations.
FUNCTIONS & FEATURES
1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard Q235
carbon steel with strong load-bearing and destructive power.The structure is firm and durable.
2. IP68 military protection standard.
3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and
lower cycles, taking much less time and lower level of noise to operate.Typical operating
(opening /closing) time is 1-2 seconds.
4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of
operation. This is ideal for large car parks or busy sites. Environment protection, low power consumption
and high reliability.
5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control,
the controller is available to work 30 meters far away from the blocker device(depends on the radio
communication environment on site).
6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.
7. Convenient maintenance. It is easy to check, test and fix the problem.
8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can be
integrated to the system very easily.
9. It can be installed with other access control elements (for example bollards, road barrier, turnstiles, fire alarm system,
traffic light) in order to achieve an access control check-point at the highest level of security.
10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built
in an almost infinite range of thickness and length to suit any roadway or level of security.
SPECIFICATIONS
| Material: | A3 Steel , with anti-rust paint |
| Surface treatment : | Paint with reflective strip |
| IP rate : | IP68 waterproof |
| Standard color: | Black and yellow, Customized color |
| Length: | 3M,4M,5M,6M Can be customized |
| Width : | 520mm |
| Height: | 70~90mm |
| Max loading weight: | 80T container truck |
| Spike Height : | 120mm |
| Spike Thickness: | 10mm |
| Drive mode: | Electromechanical |
| Voltage: | AC220V |
| System Dynamic power | 180W |
| Control distance | ≤100M |
| Remote control distance: | ≤50M |
| Thickness: | 10mm |
| Rise time : | ≤1-2S (adjustable) |
| fall time : | ≤1-2S (adjustable) |
| Working Environment : | -40ºC~+70ºC |
| Storage Environment : | -10ºC~65ºC |
| Weight | 0.5T |
