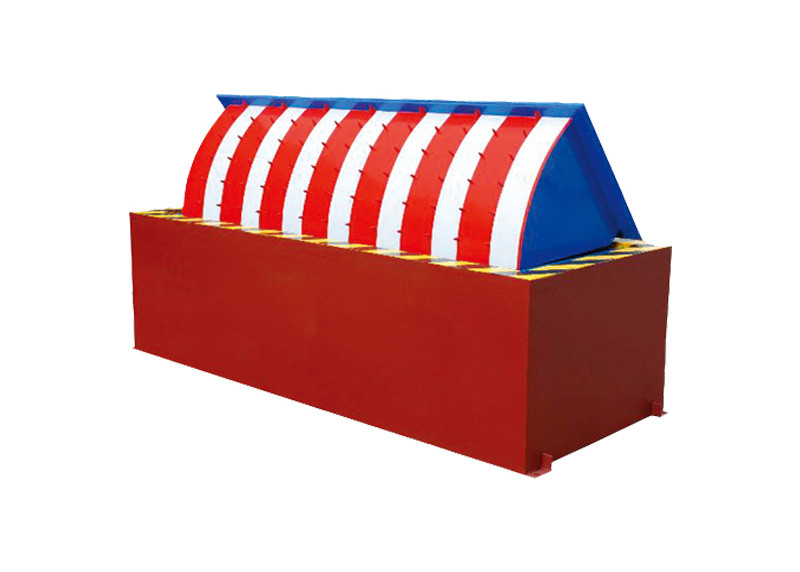

High Security IP68 Anti Terrorist Factory Hydraulic Road Blocker System for Vehicle Access Control
What is the feature of the Hydraulic Road Blocker?
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
2. Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4. Advanced mature Hydraulic pressure technologies
5. Remote control system realize wireless control up&down within 30 meters range
6. Customized for different users requests
7. Controller display : LCD and LED
8. Swiping card system: built-in card reader to control bollards up&down
9. Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
10. Connected with Computer Management OR Charging Systems
PRODUCT DIMENSION
TECHNICIAL PARAMETERS
| Control System | Electro- Hydraulic |
| Passing pressure: | ≤120 tons container trucks |
| System Dynamic power | 3.75KW |
| Rise time : | ≤1-3S(adjustable) |
| fall time : | ≤1-3S (adjustable) |
| Buffer function | buffer time :0.2s-0.5s |
| Running noise | ≤60 db |
| Voltage: | Three-phases 380V(control voltage 24V) |
| Oil container: | 60L/80L/120L |
| Control solenoid valve | 24V |
| Lifting solenoid valve | 24V |
| Remote control distance | Approx .50-100m |
| Working Temperature : | -35℃~75℃(suitable) |
| Material: | A3 steel ,Spray anti-rust paint |
| Material thickness | 16mm (20 mm,25 mm optional) |
| Waterproof: | IP68, double sealed |
| LED light color | red,blue,green,yellow,purple,white…(customized) |
| Color: | red,blue,green,yellow…(can be customized) |
| Weight: | 1.5T |
PRODUCT DISPLAY
INSTALLATION SITE
INSTALLATION INSTRUCTION
1. Easy-to-install, easy-to-maintain is what we pursue.
2. We provide detail & professional installation instruction (in English) to make your construction much easier.
With all the technical data, dimension and etc.
3. Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.
CASE REFERENCE
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer. Warmly welcome you to visit us on site.
Q: Can I order products without your logo?
A: Sure. OEM service is available as well.
Q: What is the payment term?
A: 30% deposit and 70% before delivery
Q: What is the inco-term?
A: EXW, FOB, CIF, CFR, CPT, DDU, DDP etc.
