| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HSG03 |

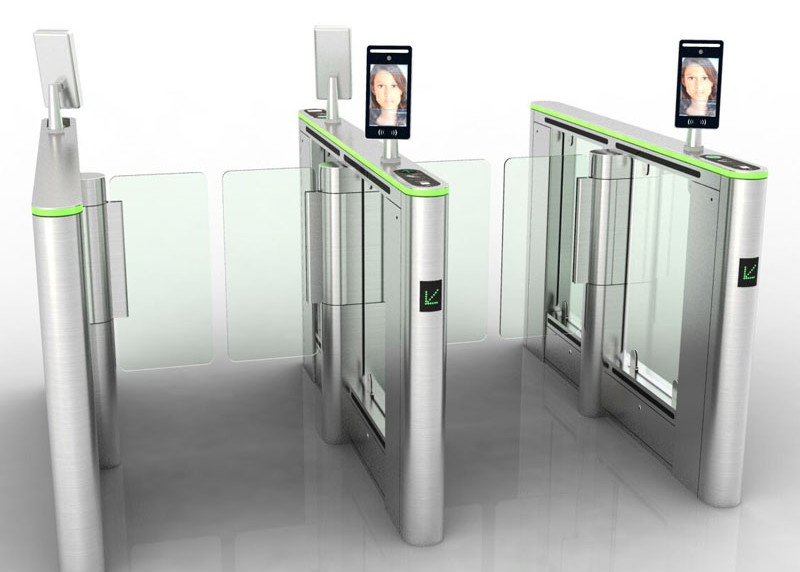

Pedestrian Access Control Security Electric Swing Gates Barrier Speed Glass Gate
DESCRITPION
1. High speed gate is designed to control pedestrians entering or exiting restricted areas, usually
used of high pedestrian traffic flow in both directions.
2. The body is made from brushed stainless steel which creates a seamless and elegant access point
to blend into most indoor environment.
3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button,
Fingerprint and Biometric device).
4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5. High speed gate are suit for elegant and luxury entrance solutions.
| 1 | Power | AC220C±10V,50/60HZ; |
| 2 | Operating Temperature | -45℃-60℃ |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Passage Width | 600mm (1000mm optional) |
| 5 | Passing Speed | Normally open-50 persons/min; Normally closed-30 persons/min |
| 6 | Manufacturing Technique | CNC laser cutting |
| 7 | Motor | DC Brushless motor, 140W/24V |
| 8 | Gate Opening and Closing time | ≤ 0.4S |
| 9 | Barrier Material | Acrylic glass, SS304 and so on |
| 10 | Working environment | indoor and outdoor(added the rainshed ) |
| 11 | Motor Operation Speed | 1600R/Min |
| 12 | Communication Distance | ≤1200M |
| 13 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 14 | Communication Connection | RS485 Communication |
| 15 | Material | Stainless steel 304, thickness is no less than 1.5mm |
DIMENSION
FEATURES AND FUNCTIONS
1. DC brushless motor is maintenance-free and new digital positioning.
2. Mechanical anti-pinch; optional in online mode or offline mode.
3. Real-time fault self-test and alarm prompts to ensure safe operation of the system, easy to maintain and use.
4. It has the light indication and the gate induction automatic lock function to guide pedestrians
to enter and exit the passage and prevent forced passage.
5. Emergency or special situation processing mode; with standard input and output interfaces,
it is convenient for the system to integrate with other devices, and can realize remote control and management.
6. Super combination ability, different styles, series channel products can be combined without affecting
system performance.
7. Powerful system expansion capability, new products can be added at any time.
8. Remote control management: The state of the gate is operated remotely to meet the special needs of users and
fire safety requirements.
9. Powerful self-checking function: The device is in fault monitoring state at any time. The error reporting function
is friendly. The human-computer interaction is realized conveniently and quickly to realize maintenance;
10. Good anti-collision function (when the gate is in the state of opening and closing, if there is an object hitting the gate,
it will stop moving and reverses back.
11. The service life is as high as 5 million times.
|
MOQ |
1 set |
|
Port |
Shenzhen, Guangzhou etc |
|
Payment terms |
T/T /Western union/ MoneyGram |
|
Producing capacity |
1000 Sets/Month |
|
Leading time |
7 to 10 days |
|
Package |
Wooden |
FAQ
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year time warranty .
